KENWOOD KAS-20E AVL, Dispatch and Indoor Location Software

Watch how the KAS-20E Software can Assist your Operations

The KENWOOD KAS-20E is scalable AVL, voice dispatch and indoor location software for KENWOOD DMR and NEXEDGE NXDN two-way radio systems. It gives control-room teams one platform for managing calls, tracking radio users, monitoring fleets and reviewing operational events.

KAS-20E supports location management for up to 1,500 subscriber units. Organisations select the licences and functions required for their radio network, then expand the system as operational needs change.

► Specifications on the KAS-20E

What Does KAS-20E Do?

KAS-20E connects compatible KENWOOD digital radio systems with a Windows-based control-room interface. Dispatchers view radio locations, manage voice calls, monitor events and access recorded operational data from one system.

Core functions include:

Voice dispatch and call management
GPS-based automatic vehicle location
BLE-based indoor radio location
Fleet and subscriber-unit tracking
Voice recording and playback

Call logs and event sharing
Geofencing and lone-worker monitoring
KML and CSV data export
User permissions and multi-client access

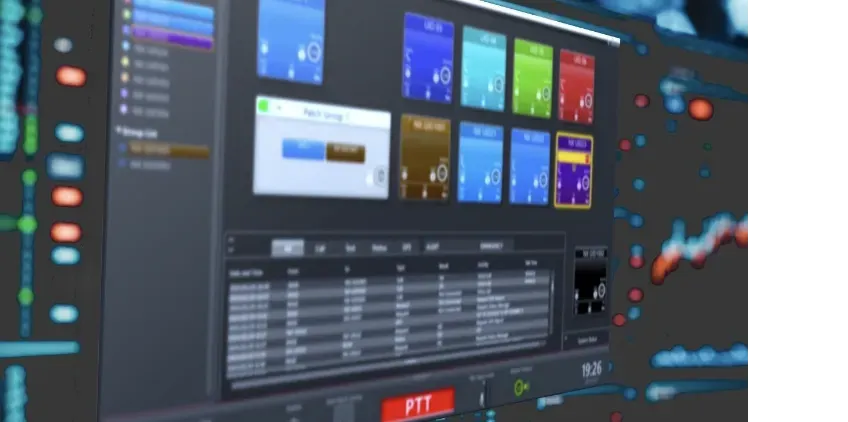

Two-Way Radio Voice Dispatch

Windows-based software to start a dispatch system for fleet management and businesses from retail to healthcare by controlling multiple subscriber units on the same network.

Transport and logistics
Ports and airports
Healthcare and hospitals
Manufacturing and warehousing
Education and campuses
Public services
Security operations
Retail and hospitality

The dispatcher can choose to monitor the same or a different audio received from left and right speakers using a Selected tile or an Unselected Tile.

NXDN and DMR Voice Encryption

KENWOOD KAS-20E supports secure voice dispatch across compatible NXDN and DMR digital radio systems. DES 56-bit encryption supports both NXDN and DMR operation, while ARC4 encryption supports DMR mode.

Encryption helps protect operational conversations from unauthorised monitoring. The required encryption settings, software licences and compatible radio equipment depend on the selected network configuration. Speak to an authorised KENWOOD communications dealer to specify the right security options for your system.

KAS-20E Dispatch Software Indoor Location

BLE Indoor Radio Location

• Location of radios inside a building can be tracked efficiently using a BLE Beacon and a BLE Gateway.
• Two RF systems and a Bluetooth system to send BLE data to a location server.
• IP and Serial connections enabled for an NXDN Conventional/Trunking or DMR Conventional console. Connectable repeaters and radios vary depending on the IP/Serial connection.
• Target radios for Indoor Location are limited to portables.
• Device location data is obtained in intervals or by an event (e.g., an emergency).

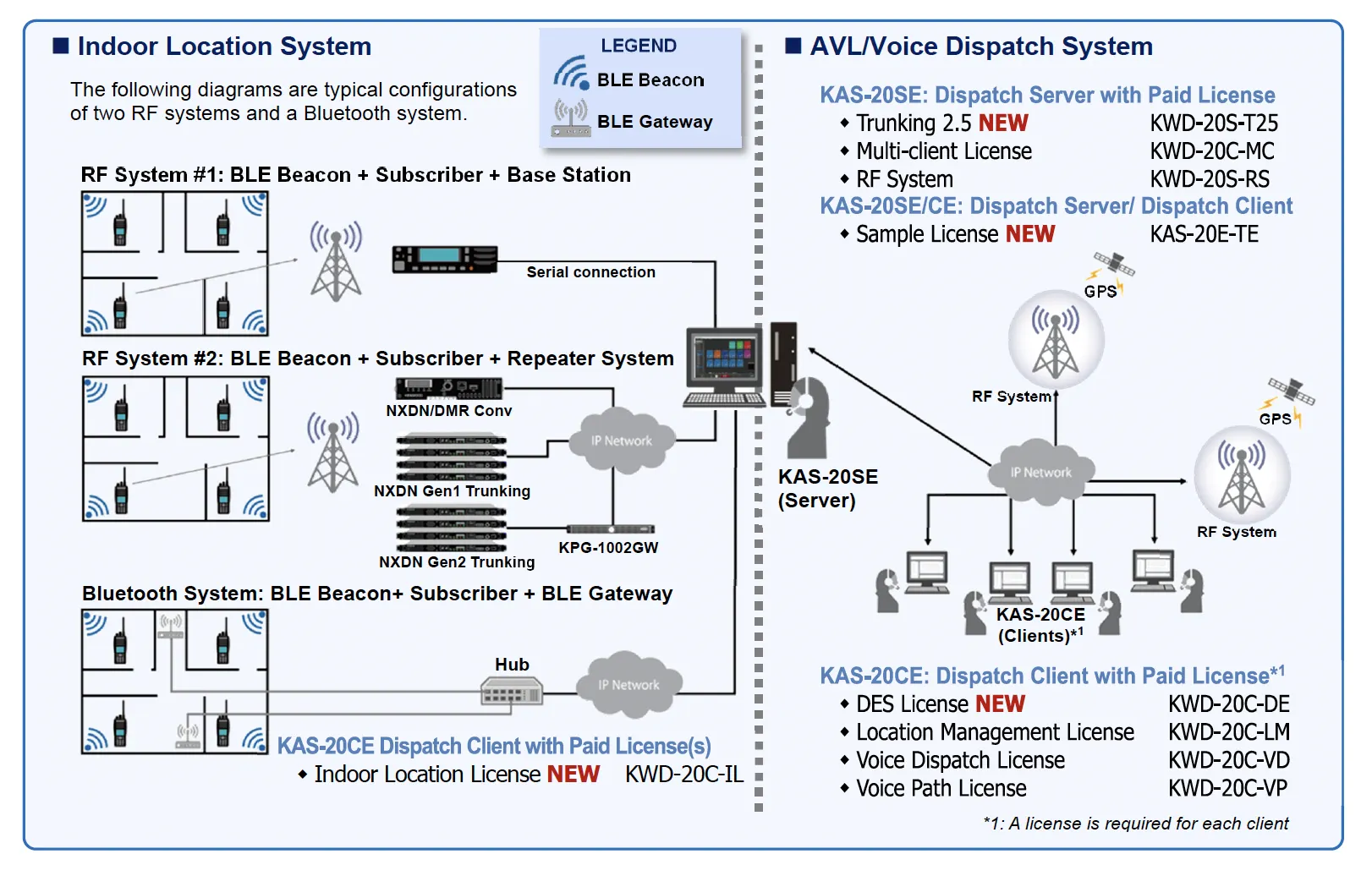

Indoor location system

GPS Fleet Tracking and AVL

• Location Management for up to 1,500 subscriber units.
• Auto & manual polling, Lone-worker, GPS time mark, Geofencing, Track units, Go to home position, and more.
• Position logging and playback.
• Multi-role dispatching functions, including IP Voice dispatch console, AVL/fleet monitoring and mapping, and call log/event sharing.
• Exports to KML or CSV format.

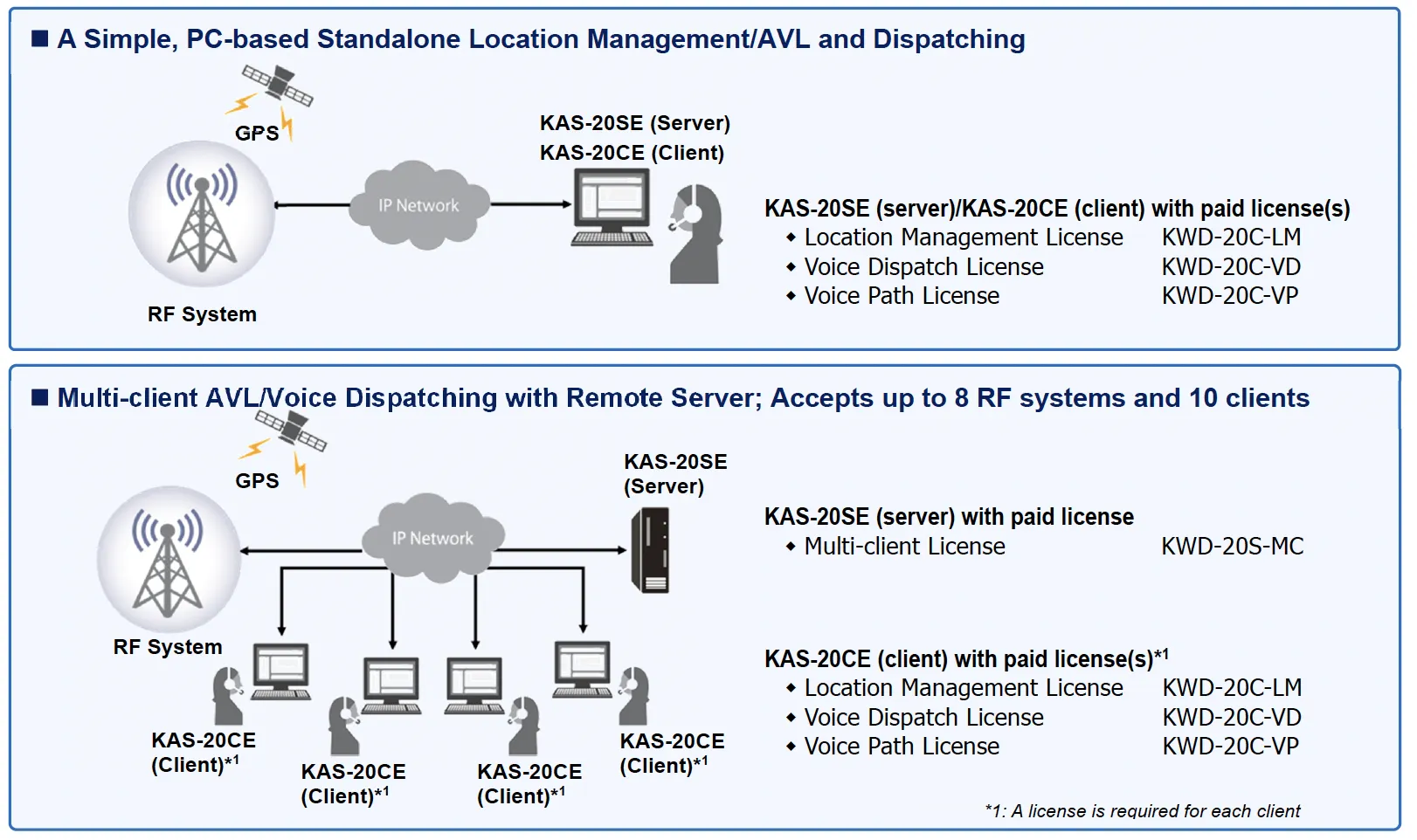

Dispatch / AVL

Scalable Radio Management Features

Flexible and scalable: The low-cost initial package is upgraded by adding user-selectable optional licenses.
Supports diverse digital radio systems & IP interfaces, including DMR Trunking 2.5.
Server stores all communications log and data (e.g. GPS, status, messages, audio, and more.).
Server-managed user roles and permissions: Register up to 30 users with 10 simultaneous logins.
Import/export asset lists such as unit, group, and fleet via TSV format; Manual/auto asset list creation.

Compatible DMR and NXDN Radio Systems

Compatible digital radio systems & IP interfaces:

DMR Trunking 2.5, DMR Tier II Conv, DMR Tier III Trunking with DMR IP Gateway KPG-1013GW
NXDN Conv, Type-C Trunking Gen1 and Gen2 with IP Gateway KPG-1002GW
FleetSync, and Indoor Location

Modular KAS-20E Software Licences

The KAS-20E can be customised and scaled by adding and authenticating software licences.
Currently available licenses include Multi-client, Voice Recording, RF System, DMR Tier III, Location Management, Voice Dispatch, and Voice Path.
All of the existing licenses authenticated with the previous software KAS-20 can be used as is, even after upgrading to the new KAS-20E.

The following new licenses have been developed and are available.

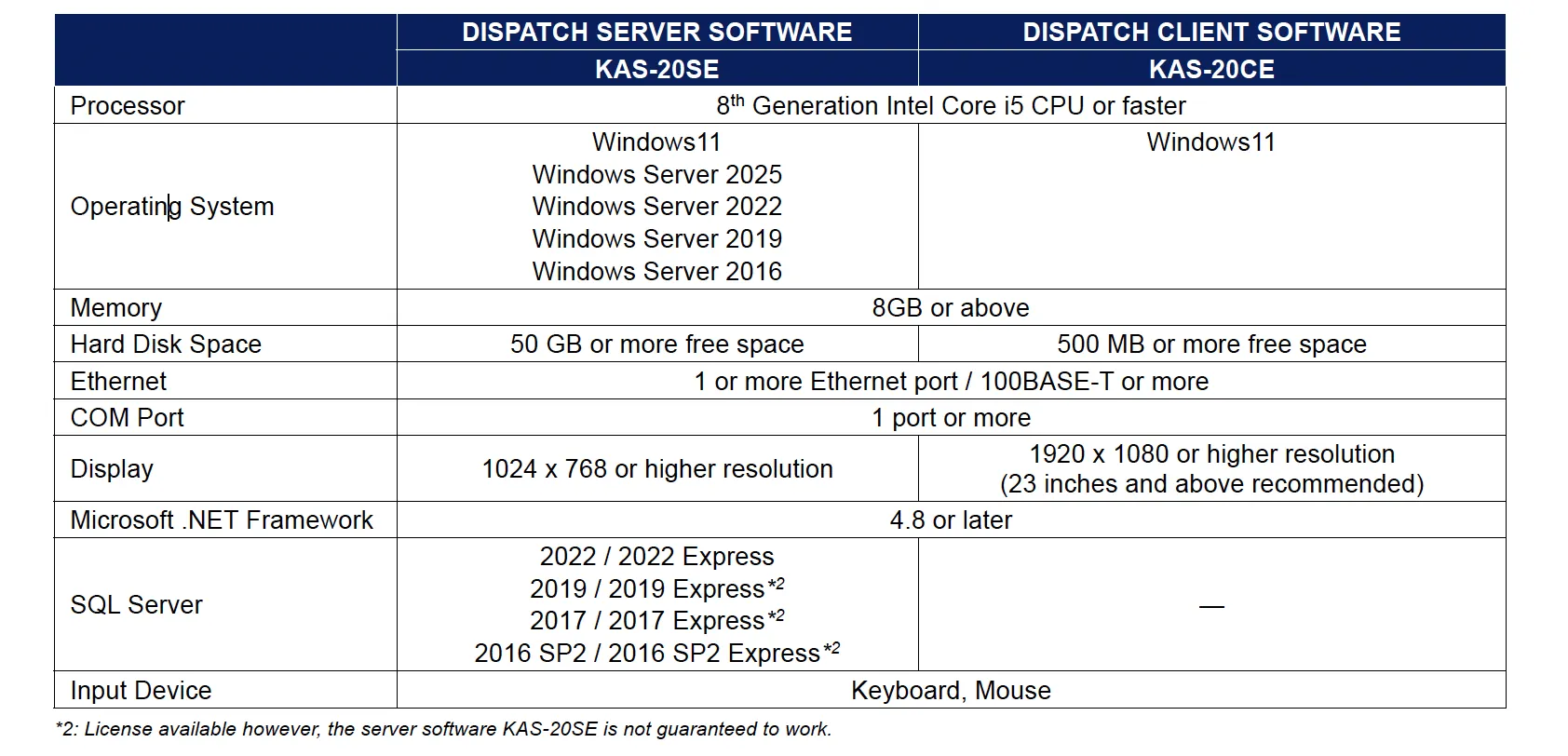

KAS-20E Computer and Network Requirements

systems requirements

KAS-20E Frequently Asked Questions

Find answers to common questions about KENWOOD KAS-20E software, including AVL, voice dispatch, indoor location tracking, radio compatibility, software licences and multi-site operation. For advice on your system requirements, contact an authorised KENWOOD communications dealer.

What is KENWOOD KAS-20E?

KENWOOD KAS-20E is Windows-based AVL, voice dispatch and indoor location software for compatible KENWOOD digital radio systems. It helps control-room teams manage calls, track radio users, review events and store operational data through one interface.

What does AVL mean in radio communications?

AVL means Automatic Vehicle Location. It uses GPS location data from compatible radios to show vehicles and radio users on a map, monitor movement and review previous positions.

Which radio systems support KAS-20E?

KAS-20E supports compatible DMR conventional, DMR Tier III trunking, DMR Trunking 2.5, NXDN conventional and NXDN Type-C trunking systems. Compatible interfaces include the KENWOOD KPG-1013GW DMR IP Gateway and KPG-1002GW NXDN IP Gateway. View the published compatibility details.

Does KAS-20E support DMR and NXDN?

Yes. KAS-20E supports compatible KENWOOD DMR and NXDN conventional and trunked radio systems. The required IP gateway, connection method and software licences depend on the radio network.

How many radio units does KAS-20E track?

KAS-20E provides location management for up to 1,500 subscriber units. The final capacity and system configuration depend on the selected licences, network design and connected equipment.

Does KAS-20E support indoor location tracking?

Yes. KAS-20E uses compatible Bluetooth Low Energy beacons and gateways to locate portable radios inside buildings. The system receives location data at set intervals or following events such as an emergency alert.

Does KAS-20E record radio calls?

Yes, when the Voice Recording licence forms part of the system. KAS-20E records compatible calls, supports playback through the communications log and exports voice recordings in MP3 format.

Which KAS-20E licences are available?

Available KAS-20E licences include Multi-client, Voice Recording, RF System, DMR Tier III, Location Management, Voice Dispatch and Voice Path. Your KENWOOD communications dealer will select the licences needed for your radio network and operational requirements. View the published licence information.

Is KAS-20E suitable for multi-site operations?

Yes. KAS-20E supports scalable radio management, multiple RF systems, multi-client operation and remote access across compatible IP-connected networks. The software supports up to 30 registered users and 10 simultaneous logins, subject to the selected system design and licences.

How do I specify a KAS-20E system?

Start by defining your radio system, number of users, sites, dispatch positions, required tracking functions and recording needs. A KENWOOD communications dealer will confirm compatibility and specify the gateways, server equipment, connections and KAS-20E licences required.
